Pro-doors Option H - Front entry doors with fixed panels
Pro-doors are manufactured to a high standard using a robust aluminium frame that ensures the highest level of safety, reliability and confidence.
The product incorporates stylish, rounded profiles offering a complete white clean finish to all component parts. This versatile system is available in many configurations to maximise space and suit the user’s needs. Door styles for both front and corner entry are available in single folding doors, sliding doors, bi-folding doors, tri-folding doors and fixed panel options. An extended compensator is available which allows a further 35mm adjustment (total 65mm).
Doors are available as half height (750mm) as standard although bespoke sizes can be made to order. The fixed panel options are supplied with 2500mm uprights complete with wall compensators, to allow fixing to both the tray, floor and ceiling. Our Pro-door system is compatible with most trays and wet floor installations in the catalogue.
Our half height Pro-Door system enables easy level access for family members and carers. Our quality constructed, half height shower door system is available in a variety of configurations and sizes for use in wet rooms and shower areas.
Use the links below to download more information about this product:
- There are no downloads for this product.
Our half height Pro-Door system enables easy level access for family members and carers. Our quality constructed, half height shower door system is available in a variety of configurations and sizes for use in wet rooms and shower areas.
Features and benefits:
- 2 elongated holes to connect compensator to wall, this allows 7½° of adjustment to assist straight install
- Compensator has 30mm of adjustment, this allows adjustment to overcome any wall imperfections
- Extended compensator available (65mm adjustable)
- Simple, single screw locking system within the door and compensator to grip the doors into position
- Can be installed and adjusted by one person
- Improved strengthed rounded hinge
- Stylish and safe (no sharp edges)
- Aluminium box construction. Strong, hard wearing
- Clean, white corner pieces rubber panel seals
- P.E.T.G. (Police riot shield material) panel strong & safe, will not break into shards
- Rounded bi-fold door locking system stylish & safe (no sharp edges)
- Labyrinth seals between bi-fold & doors, stopping water ingress
- Each door has 8 concealed neodynium magnets for a strong seal (no unsightly black strips)
- 3 Way seal on base of doors for excellent water seal
- Rising butt hinge has an extended foot that is secured for extra stability to the tray or former
- Rising butt hinge stops wear on seal and allows easy movement of doors
- Each set of doors is supplied with a curtain rail and curtain(s)
- Improved strenghened in hinges

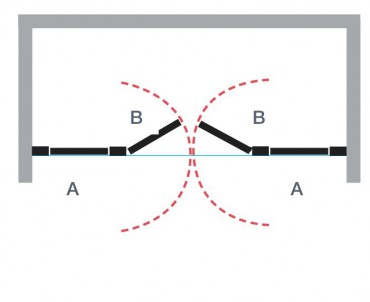

| Left Hand | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Tray Size | A | B | C | D | E | F | G | H | To Suit Tray | To Suit Wet Floor |
| 1135 x 770 | 440 | 322 | 344 | 417 | 323 | 750 | 1106 - 1136 | 740 - 770 | ||
| 1200 x 700 | 460 | 343 | 365 | 382 | 288 | 750 | 1168 - 1198 | 670 - 700 | ||
| 1200 x 800 | 460 | 343 | 365 | 432 | 338 | 750 | 1168 - 1198 | 770 - 800 | ||
| 1300 x 700 | 494 | 376 | 398 | 382 | 288 | 750 | 1268 - 1298 | 670 - 700 | ||
| 1300 x 800 | 494 | 376 | 398 | 432 | 338 | 750 | 1268 - 1298 | 770 - 800 | ||
| 1400 x 700 | 528 | 409 | 431 | 382 | 288 | 750 | 1368 - 1398 | 670 - 700 | ||
| 1400 x 800 | 528 | 409 | 431 | 432 | 338 | 750 | 1368 - 1398 | 770 - 800 | ||
| 1400 x 900 | 528 | 409 | 431 | 482 | 338 | 750 | 1368 - 1398 | 870 - 900 | ||
| 1500 x 700 | 561 | 443 | 465 | 382 | 288 | 750 | 1469 - 1499 | 670 - 700 | ||
| 1500 x 760 | 561 | 443 | 465 | 414 | 320 | 750 | 1469 - 1499 | 734 - 764 | ||
| 1500 x 800 | 561 | 443 | 465 | 432 | 338 | 750 | 1469 - 1499 | 770 - 800 | ||
| 1500 x 860 | 561 | 443 | 465 | 464 | 370 | 750 | 1469 - 1499 | 834 - 864 | ||
| 1600 x 700 | 594 | 476 | 498 | 382 | 288 | 750 | 1568 - 1598 | 670 - 700 | ||
| 1600 x 800 | 594 | 476 | 498 | 432 | 338 | 750 | 1568 - 1598 | 770 - 800 |
Each door set is supplied with a curtain rail and curtain(s).
